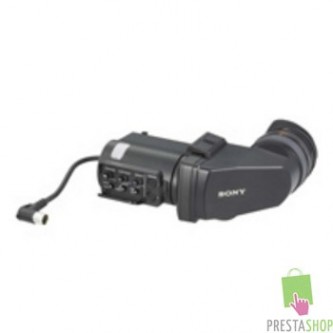

HDVF-C35W HD Colour LCD Viewfinder View larger

HDVF-C35W HD Colour LCD Viewfinder

hdvfc35w

The HDVF-C35W, 3.5-inch HD LCD colour viewfinder provides crisp, clear images from its full colour TFT-LCD display.

More details

Add to wishlist

More info

The HDVF-C35W, 3.5-inch HD LCD colour viewfinder provides crisp, clear images from its full colour TFT-LCD display. By using a uniquely designed detachable eyepiece, camera operators can clearly view images from various positions and angles. In addition, the LCD display provides a wide viewing angle, so that a number of people can view the same picture at the same time. The viewfinder features an aspherical lens in the eyepiece, to reduce aberration at each corner of the viewfinder image for more precise focusing.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

General
Power supply 10.5 to 17.0 V DC (supplied by the camera)
Power consumption 6.3 W
Operating temperature -20 °C to +45 °C (-4 °F to +113 °F)
Storage temperature -20 °C to +60 °C (-4 °F to +140 °F)
Mass 850 g (1 lb 14 oz)
-- LCD-- LCD type
Image display area dimensions 76.8 x 43.2 mm (3 1/8 x 1 3/4 inches) (H/V, 16:9 aspect ratio)

Performance

Brightness 250 cd/m2
Resolution 500 or more lines
Supported formats 1080/23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF 1080/50i, 59.94i, 60i
Colour temperature 6500K (with viewfinder barrel and eyepiece attached)
Indicators Green tally, TALLY/REC, BATT, !, MAG, spare, SAVE

Input signals

Pb, Pr 0.7 Vp-p, asynchronous, 75 ? terminated
Y 1.0 Vp-p, synchrohous, 75 ? terminated

Connector

Camera connector Round type 20-pin

Supplied Accessories

Operation manual (1)
