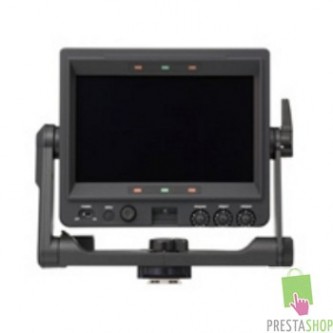

HDVF-C950W Viewfinder LCD HD

Model hdvfc950w

The large display size, high resolution, and wide viewing angle provided by the HDVF-C950W make it ideal for high performance studio and OB applications. The fast response of the new colour LCD screen are especially beneficial when shooting sports and other fast moving applications.

More details

Write a review

More info

Larger Image size

The 9" diagonal LCD screen enables fast, accurate focussing. However the compact overall dimensions and low power consumption enable operation even in portable camera configuration.
Improved Viewing Angle

The new LCD screen has a very wide viewing angle in both horizontal and vertical directions.
Fast Response Time

The response speed of the display is dramatically reduced, ensuring clear reproduction even of fast moving subjects.

Technical Specifications

Please be aware that the features/specifications can differ from country to countryGeneral

Power supply:	DC 10.5 to 17.0 V
Power consumption:	18 W
Operating temperature:	-20 °C to 45 °C
Storage temperature:	- 20 °C to 60 °C
Mass:	2.7 kg not including hood
Dimensions (WxHxD):	290 x 265 x 199mm including hood
LCD	9-inch diagonal colour TFT screen
Image display area dimensions:	197 x 111 mm (16:9 aspect ratio)

Performance

Brightness:	350 cd/m2
Resolution:	400 or more lines
Supported formats:	Effective scanning lines/Format/Horizontal scanning frequency/Vertical scanning frequency 1080/23.98PsF/26.97 kHz/47.95 Hz 1080/24PsF/27 kHz/48 Hz 1080/25PsF/28.13 kHz/50 Hz 1080/29.97PsF/33.72 kHz/59.94 Hz 1080/30PsF/33.75 kHz/60 Hz 1080/50i/28.13 kHz/50 Hz 1080/59.94i/33.72 kHz/59.94 Hz 1080/60i/33.75 kHz/60 Hz 1035/59.94i/33.72 kHz/59.94 Hz 1035/60i/33.75 kHz/60 Hz
Color temperature:	6500 K
Indicators:	R Tally, G Tally, Batt, !
Input signals:	Pb, Pr: 0.7 Vp-p, asynchronous, 75 ? terminated Y: 1.0 Vp-p, synchronous, 75 ? terminated
