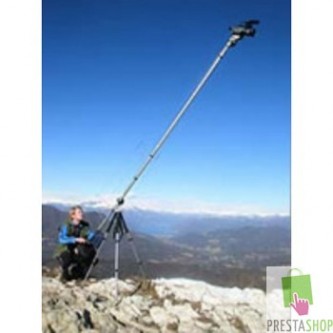

MiniCrane camera light crane

With packing dimensions of only 0,15 x 0,17 x 1,0 m (5.9 x 6.7x 39.4 in) and a weight of approx. 5 kg (11 lb) the ABC MiniCrane achieves dimensions which come close to those of a tripod, most notably with the total length of the crane arm of 5,2 m. This was possible by using a special tube.

Impressive functionality

Beside the impressive small and light dimensions, the ABC MiniCrane has a number of details which make the operation of the crane very easy.

?EUR? The tilt pre-adjustment of the camera can easily be done thanks to a disc with a latching screw.
?EUR? The alternation between a fixed camera position and automatic tilt during lifting can easily be done thanks to a deflection disc.

?EUR? Disc down: The camera always has a fixed (preselected) tilt angle.
?EUR? Disc up: The camera automatically changes its position during lifting and lowering. You can vary the intensity of the tier at infinite points between upper and lower position fo the disc.
?EUR? The extension and shortening of the crane arm can also be done quickly and easily without any tools:
?EUR? By flapping the struts forward the tension of the wire ropes can be released
?EUR? Unhook the exsisting set of wire ropes
?EUR? Connect or dismantle the tube extension
?EUR? Hook into the new set of wire ropes
?EUR? By flapping the struts backwards the tension of the wire ropes is reached again
?EUR? After mounting the camera, the crane with the modified arm is now ready for operation again!

?EUR? The MiniCrane is universal. The flat plate of the panning joint can be mounted on every (50/75/100 mm ball) tripod.
