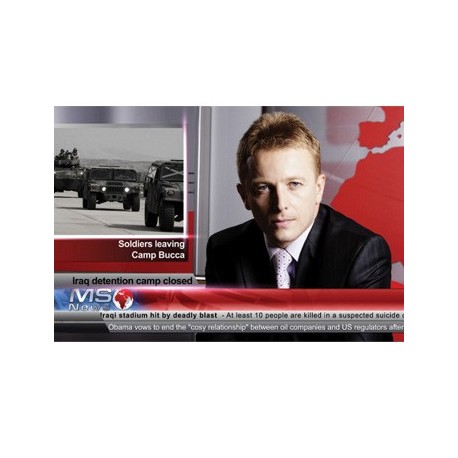

Software per titolazione SD Visualizza ingrandito

Software per titolazione SD

magicsoftcgsd

MagicSoft CG is a broadcast solution that is used to easily create, display and control a variety of different projects including Lower-Thirds, Tickers, Logos, Crawls, Clock and Rolls - essentially everything you need in your day to day operations

Maggiori dettagli

Dettagli

MagicSoft CG is a broadcast solution that is used to easily create, display and control a variety of different projects including Lower-Thirds, Tickers, Logos, Crawls, Clock and Rolls - essentially everything you need in your day to day operations

An unlimited number of items that can be animated by moving, rotating and changing color and transparency can be previewed prior to going out to air. Multiple real-time effects can be used for graphics and text providing an optimal visual appearance

MagicSoft CG is compatible with Blackmagic Design Decklink standard and high definition video cards that supports internal or external keying
New features introduced
in Magicsoft CG version 5
Video playout supporting avi DV, mjpeg and uncompressed 24/32 bit with alpha channel that can be controlled via playlist
Learn more ...
Flash support including swf with alpha channel
Learn more ...
DeckLink both internal and external keying support
Learn more ...
Animations easy to set by using In and Out presets
Learn more ...
Selecting the desired Decklink card for output and video Live capturing ( when more than one is installed )
Learn more ...
Link by position and/or by size ( an item will follow the designated "parent item" and/or will automatically scale in order to match the size of the "parent item" )
Learn more ...
Rounded corner rectangles that supports key frame animation
Learn more ...
Draw trajectory of an animated item in preview
Learn more ...
Improved color selector
Learn more ...
Anti-flicker for images or Live video
Learn more ...
De-interlace for Live video
Learn more ...
Enhanced user experience by using the Live Manager application
Learn more ...
Live Manager built in option to schedule actions for the projects (PLAY, STOP, FFW ... )
Learn more ...
Real-time text effects
Learn more ...
On the fly adjustable ticker speed
Learn more ...
Lower Thirds with dynamically assigned images
Learn more ...
Support for 16/9 modes in PAL and NTSC
Learn more ...
Option to shrink text
Learn more ...
Auto-Fit option for text
Learn more ...

DESCRIPTION


Broadcast quality


MagicSoft CG has a GPU-based rendering engine that supports all SD and HD modes
The graphics is 24 bit (TrueColor) with 8 bit alpha channel (256 transparency levels)
De-interlacing and anti-flicker display options guarantee proper output of images and live video
The engine offers Antialiasing for TrueTypeFonts and Anisotropic Filtering for images profiting by GPU


3D working environment (no layers)


The objects can be animated by moving, rotating and changing color and transparency and can be dynamically moved on z-axis eliminating the limitations of the layer oriented programs
Rendering for both Preview and On Air is made in the GPU so powerful CPU is not needed
The key-frame concept is used to describe the characteristics in time of an object and can be used to interpolating the
previous-mentioned characteristics in the time intervals between key-frames

Scripting and Automation


MagicSoft CG offers the possibility to run application like SMStoTV by scripting
The TCP/IP protocol allows you to control the displaying and content of a project

HARDWARE SPECIFICATIONS


The following configurations are based on Intel motherboards ( socket 775 and 1156 )
The recommended configurations are easy to upgrade from SD to HD (sure, an HD system can also work in SD )
Our software works under Windows 32bit OS ( Xp, Vista or Windows7 )
The recommended operating system is Win7 64 bit


SD
(PAL / NTSC)
CPU Socket MotherBoard Processor RAM Memory Video Card Blackmagic Card
Socket 1155 Gigabyte
GA-P67A-UD3-B3
GA-P67A-UD5-B3
Intel Core i5 2500 2 X 1GB nVidia GT440 DDR5 DeckLink Studio
Socket 1156 Gigabyte
GA-P55-UD3
GA-P55-UD5
GA-P55-UD6
Intel Core i5 750 2 X 1GB nVidia GT440 DDR5 DeckLink Studio
Socket 775 Gigabyte GA-EP45-DS3 Intel E6600 2 X 1GB nVidia GT440 DDR5 DeckLink Studio
Mobile Platform
HP EliteBook
8460p
Mobile Intel
QM67 Express chipset
Intel Core i7 4GB DDR3 SODIMM Radeon mobile 6740M
1 GB dedicated DDR3
UltraStudio SDI
UltraStudio PRO
( USB 3.0
works only
for Win7 64 bit )

HD
(720p / 1080i)
CPU Socket MotherBoard Processor RAM Memory Video Card Blackmagic Card
Socket 1366 Asus
Sabertooth x58
( use only the
16x PCIe slots )
Intel Core i7
920 - 970
3 X 2GB
( Win7 64 bit
recommended)
nVidia GTX 560
2GB DDR5
DeckLink HD 3D
Socket 1155 Gigabyte
GA-P67A-UD5-B3
GA-Z68X-UD7-B3
Z68MA-D2H-B3
Intel Core i5 2500 2 X 2GB nVidia GTX 460 DeckLink HD 3D
Socket 1156 Gigabyte
GA-P55-UD5
GA-P55-UD6
Intel Core i5 750 2 X 2GB nVidia GTX 460 DeckLink HD 3D
Socket 775 Gigabyte GA-EP45-DS3 Intel E6600 2 X 2GB nVidia GTX 460 DeckLink HD 3D

FREE APPLICATIONS


software screenshot
Extra Keyboard (free application)


This application allows you to map multiple commands on each button in order to
manage projects and content of the text and images.
A powerful wizard will help you to make this only by mouse clicking.



software screenshot
RSS (free application)


With our free RssToTxt program you can manage the news from a RSS feed and
by saving as Unicode text files you can display them using a ticker project
Latest version adds some function to find and replace strings, convert upper/lower



Scheduler (free application)


This application can run scheduled commands for the CG at specified time.

GPI (free application)


GPIClient converts a serial port to a GPI IN device. Commands can be map for contact on and contact off separately .



SAMPLES
(click on pictures to download the .wmv files)

3D Lower-Third
Sms Game
Bumper 3D Effect
Chat
Call TV Show
Sms Game
Ticker & SMS Game
SMS Game


FAQ



What are the primary benefits of MagicSoft CG ?

MagicSoft CG creates a 3D working environment using a GPU based 3D engine with low requirements for processor and the rest of the PC.


Are MagicSoft CG products available in analog and serial digital input/output ?

Yes. MagicSoft CG works with all Decklink cards in Keying mode and , as example, with Decklink Studio you can have SDI input and composite/YUV output.


How about licensing ?

MagicSoft CG SD is the basic license and allows you to work with unlimited tickers, logo, lower thirds, clock plus scripting for SMS games and UTF-8 TCP/IP protocol. The HD option can be purchased from the start or as upgrade. The license is bound in a dongle USB key , so you can move the installation to another computer without problems.


MagicSoft CG offers a preview while having a project On Air ?

Yes. You can preview and adjust projects on your computer screen before sending it On Air.


Do MagicSoft CG products support external commands?

Yes. We have a very flexible TCP/IP protocol that allows you to control the projects content and status


There is support for animations in MagicSoft CG ?

Yes. The animation concept works on text, animated sequences, clock, lower thirds. MagicSoft CG offers a system of keyframes which is applied for movement , rotation , color and transparency ( please see the pdf tutorial from installer)



For longer image sequence there is a possibility to compress the images ?

Yes. The .dds compression is supported and has a 4:1 compress ratio. In the installer package there is a free additional program for converting .tga to .dds.


How many more layers/objects can MagicSoft CG sustain?

MagicSoft CG it is not limited on working with layers. Being a full 3D environment with ortho projection it gives you the possibility to freely move the items. As for performance , in HD using a nVidia 9600GT card and an Intel Core2 Duo 2.5GHz processor you can have 3-4 tickers with animated smileys, several lower-thirds and rolls and as many graphic sequence that is allowed by the RAM memory capacity
