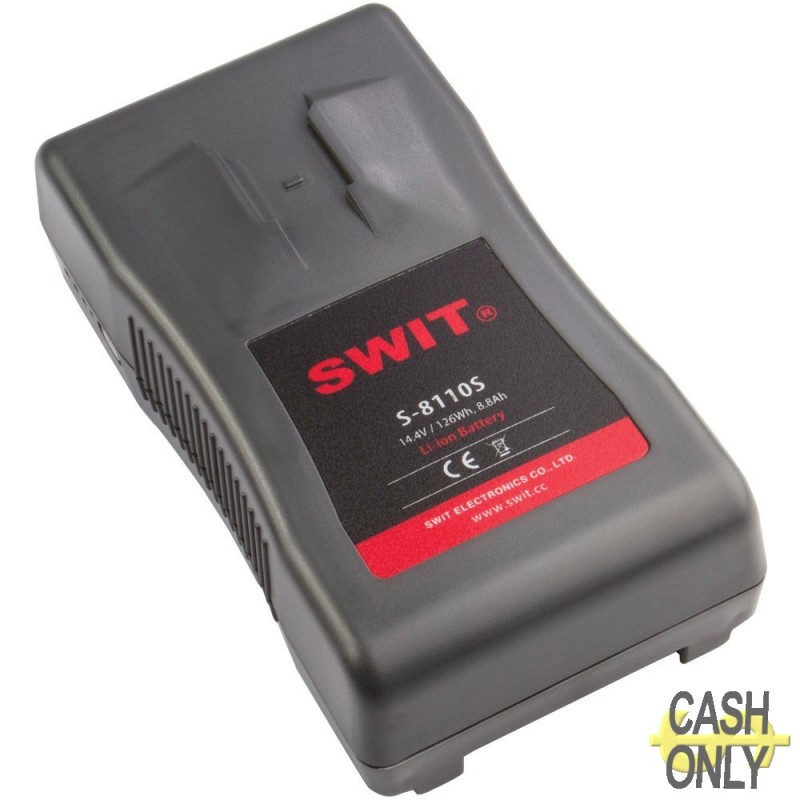

S-8110S 126Wh V-mount Battery

Swit S-8110S 126-watt V-Lock lithium battery is a lightweight 126Wh V-mount camera battery, with a D-tap socket for camera light or other equipments. It has a 4-level LED indicator to give you a view of remaining power before mounting to camera, and a connecting shoe for wireless receiver S-7002. The build-in intelligent circuit has multiple protections of abnormal current, voltage and temperature.

The 8110S battery being a lithium ion battery does not suffer from the memory effect, it has a light battery (0.9 kg), and is equipped with various protection systems, including over-temperature control, voltage control and abnormal current.

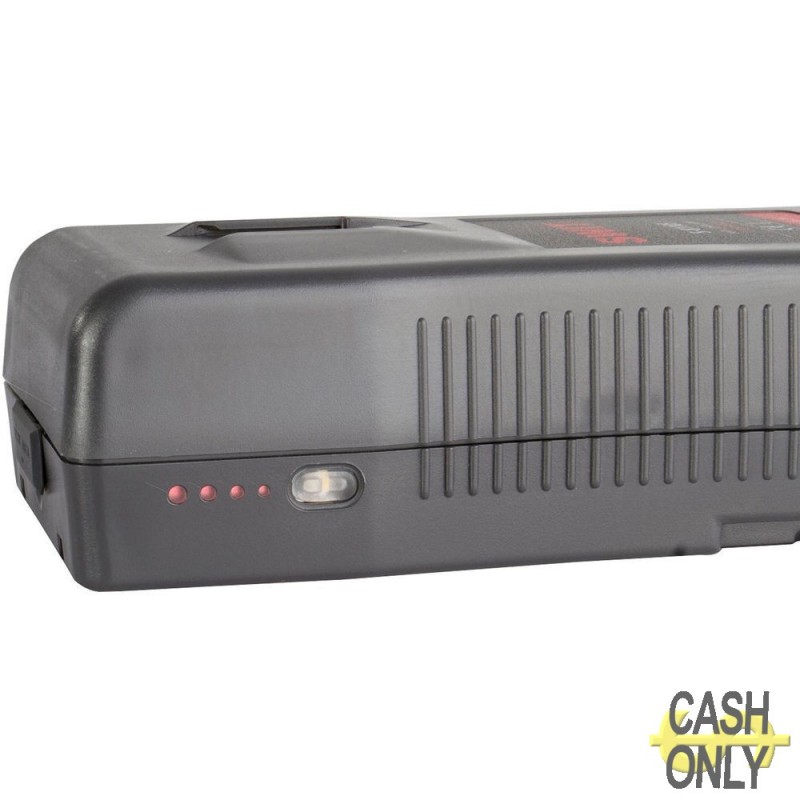

The 8110s, like most Swit batteries, has a built-in 4-LED indicator that shows the remaining battery power.
Overtemperature and voltage protection circuit

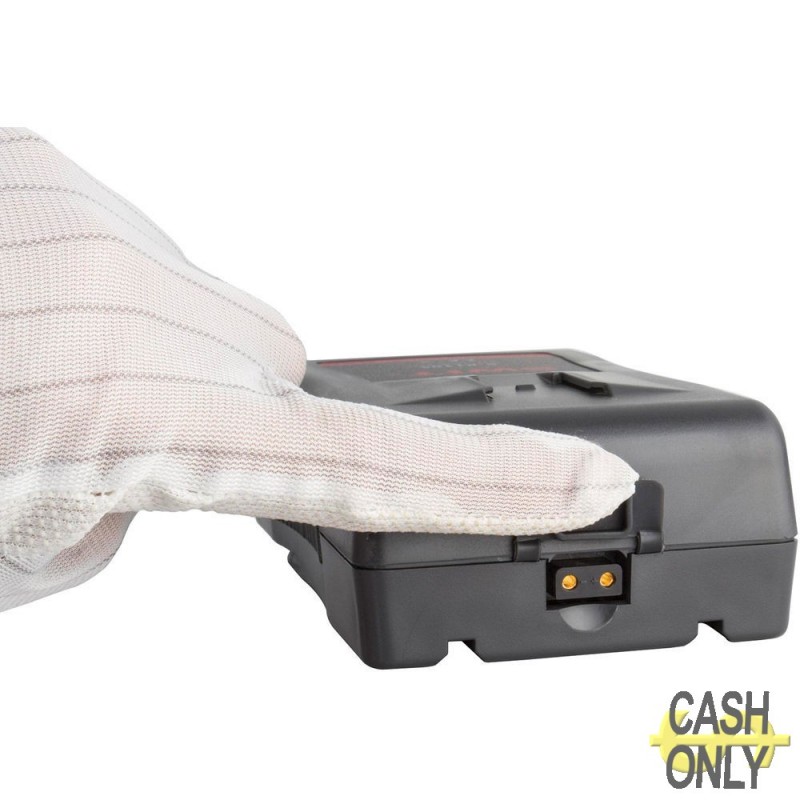

This battery also has an output with D-Tap connector for powering a lighting spotlight (for example Swit S-2040 or S-2050 LED spotlight)

To be charged with the following Swit charger models: SC-302S, SC-304S S-3802S, portable S-3010S

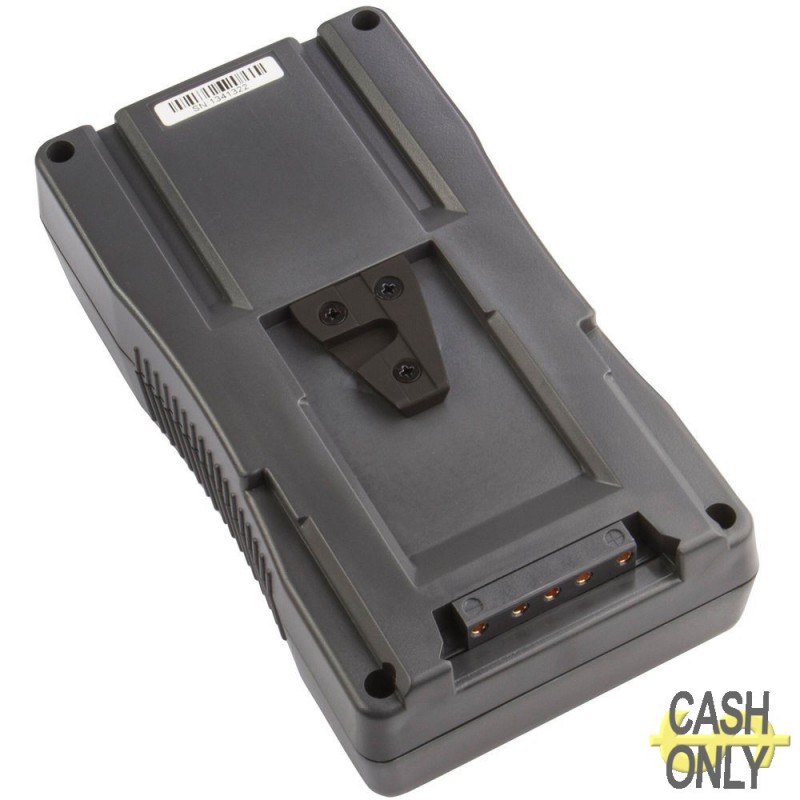

The terms V-Mount or V-Lock identify the same type of attack.

Specification:
- Voltage: 14.4V
- Capacity: 126Wh
- Max output power: 70W
- Max output current: 5A
- Over current protection: 10A
- Mount type: V-mount
- Operation Temperature: 0 - 40 Â ° C
- Net weight: Approx 0.9kg
- Dimensions: 165x90x49mm
